Maslow CNC Kit with Z-Axis by MakerMade

12 reviews
$549.00

Maslow CNC Kit with Z-Axis by MakerMade

12 reviews
$549.00
A 4 x 8 foot DIY CNC kit capable of making anything you can dream up. Based on Maslow CNC’s original design and endorsed by Maslow for distribution. Includes a USB flash drive with 10 FREE PROJECTS!
  • Designed in Arkansas
  • Free U.S. Shipping
  • Dedicated Support
Availability: translation missing: en.general.icons.icon_check_circle icon 105 in stock, ready to be shipped

Notify me when back in stock

Product Highlights

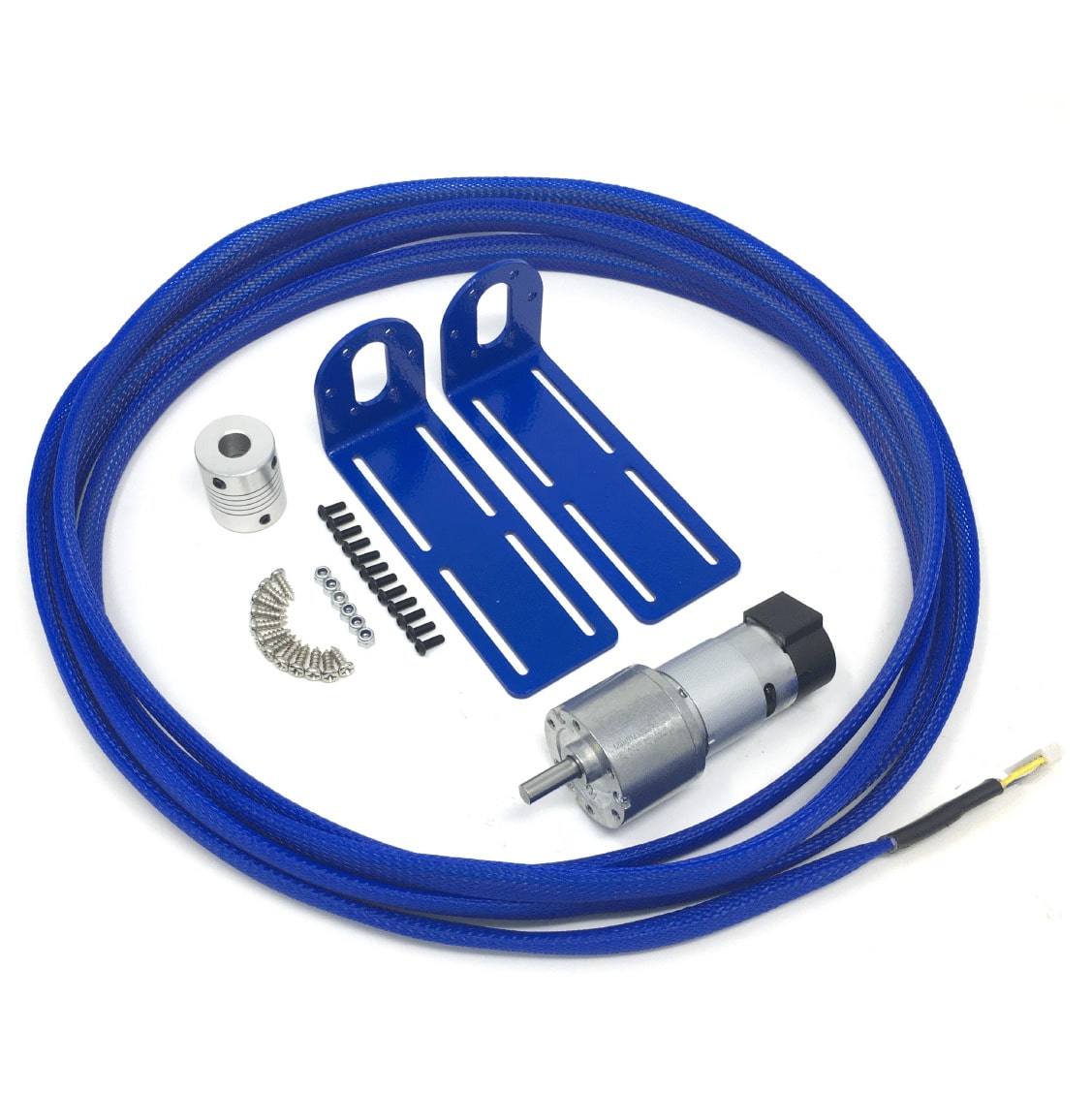

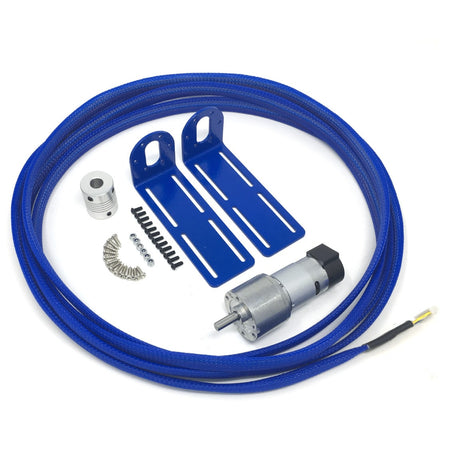

This is the original Maslow CNC Router Kit, with upgraded features. Most importantly, the Z-Axis kit eliminates the need to manually adjust cut depth during the project build. This kit is manufactured by MakerMade, in agreement with Maslow CNC.
  • 4x8 feet of Cutting Space
  • Quality components built to last
  • Accurate cutting at scale
  • 10 free projects to get you started

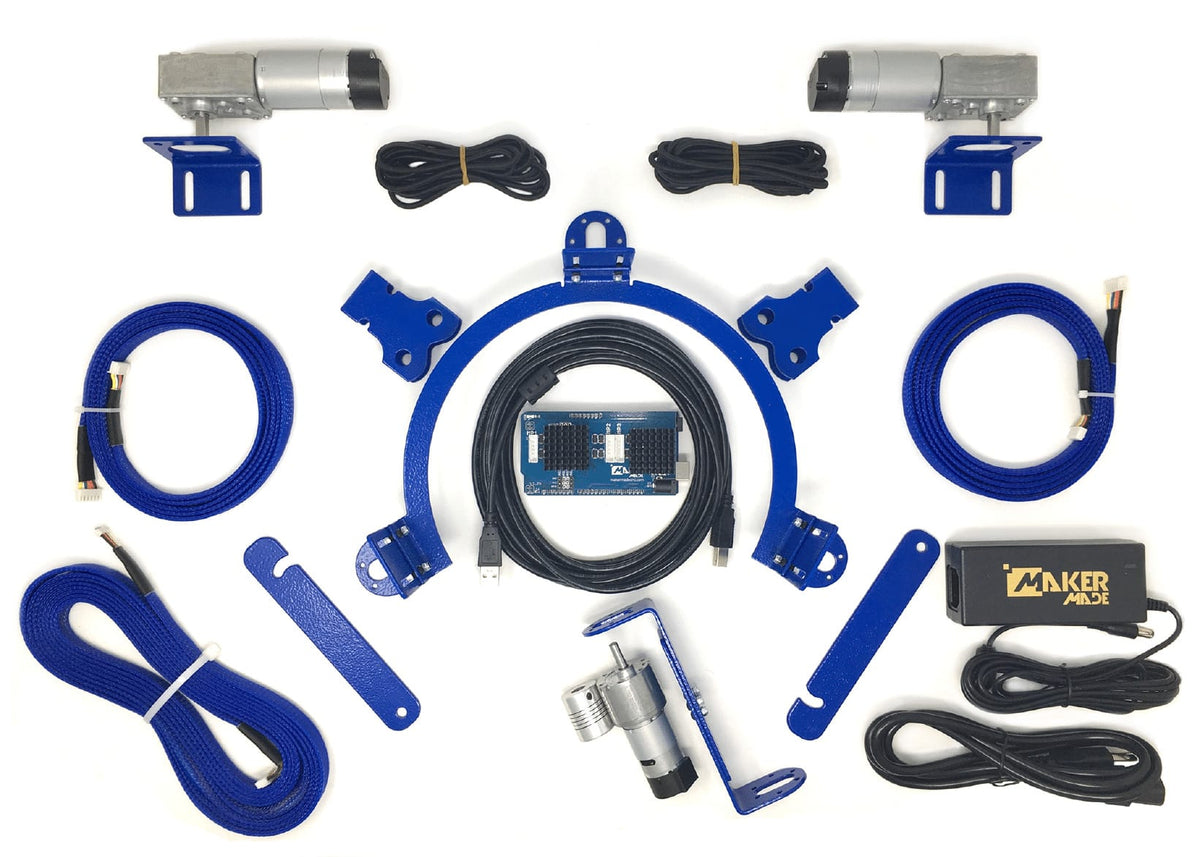

What’s Included

  • Electronic Control Board
  • X,Y,Z Axis Motors
  • Chain Ring Mount Hardware
  • 11 ft Drive Chains
  • Chain Tension Bungee Cord
  • Metal Brick Straps
Make More For Less

Bigger projects in a fraction of the space for a fraction of the price.

Guided Set-Up

All the resources you need to get started.

Unrivaled Support

Dedicated support, resources and community.

Included Warranty

1-Year Parts Replacement Warranty on all machines.

Included Software

Designed for use with our open-source Makerverse software to simply calibrate and run your machine.

Dedicated Support

Dedicated US based support team and live weekly Q&A sessions to assist you throughout your set-up and projects.

Set-Up Resources

Living assembly guide with videos, a detailed resource page and free project files to get you up and making quickly.

What You Can Make

Cutting

Technology: CNC Cutting/Routing (Computer Numerical Controlled)

Cutting Volume: 4ft x 8ft x 1.625in (1.22m x 2.44m x 4.13cm), up to 32 sq ft

Maximum Cutting Speed: Up to 40 in/min (ipm) (17mm/s)

Material compatibility: Hardwoods, Plywood, MDF, Laminate, Hard Plastics (acrylic, nylon, uPVC, hard PVC), Soft Plastics (polycarbonate, polyethylene, soft PVC), thin sheet aluminum

Router Bit Compatibility: Any drill, milling, or speciality bit that is compatibile with your router

Router Bit Size: 1/8in-1/2in (Depending on router used)

Router Specifics: Based on router used, see our recommend router list for individual differences

Accuracy: Up to 3mm variance across 32 sq ft

Mechanical

Weight: 12lbs (5.4kg)

Package Size: 10in x 8in x 12in (25.4cm x 20.3cm x 30.5cm)

Construction: All Metal Hardware

X,Y, and Z motors: Industrial Drive Motors

Max Plunge Depth: 1.625in (4.13cm), depending on router

Dust Collection: None (Available with certain routers)

Router Clamp: None (router housing used)

Chains: 11ft (3.35m) (15ft Chains Available)

Z-Axis: None

Router: See manufacturer specifications

Electrical

Power: 100-240v 50-60Hz 2.0A Input;12v, 5A Output

Arduino: Arduino Mega 2560 + v1.2b Shield

Firmware: Holey v51.28

Connectivity: USB-B

Router: See manufacturer specifications

Software

Gcode Sender: Makerverse

File Format: Gcode

Included with the Maslow

1-Year limited warranty

Guides, videos, online resources, and community

Tools for Kit Assembly

US, EU, AU, UK Power Cord Choice

USB Drive

Support by MakerMade
