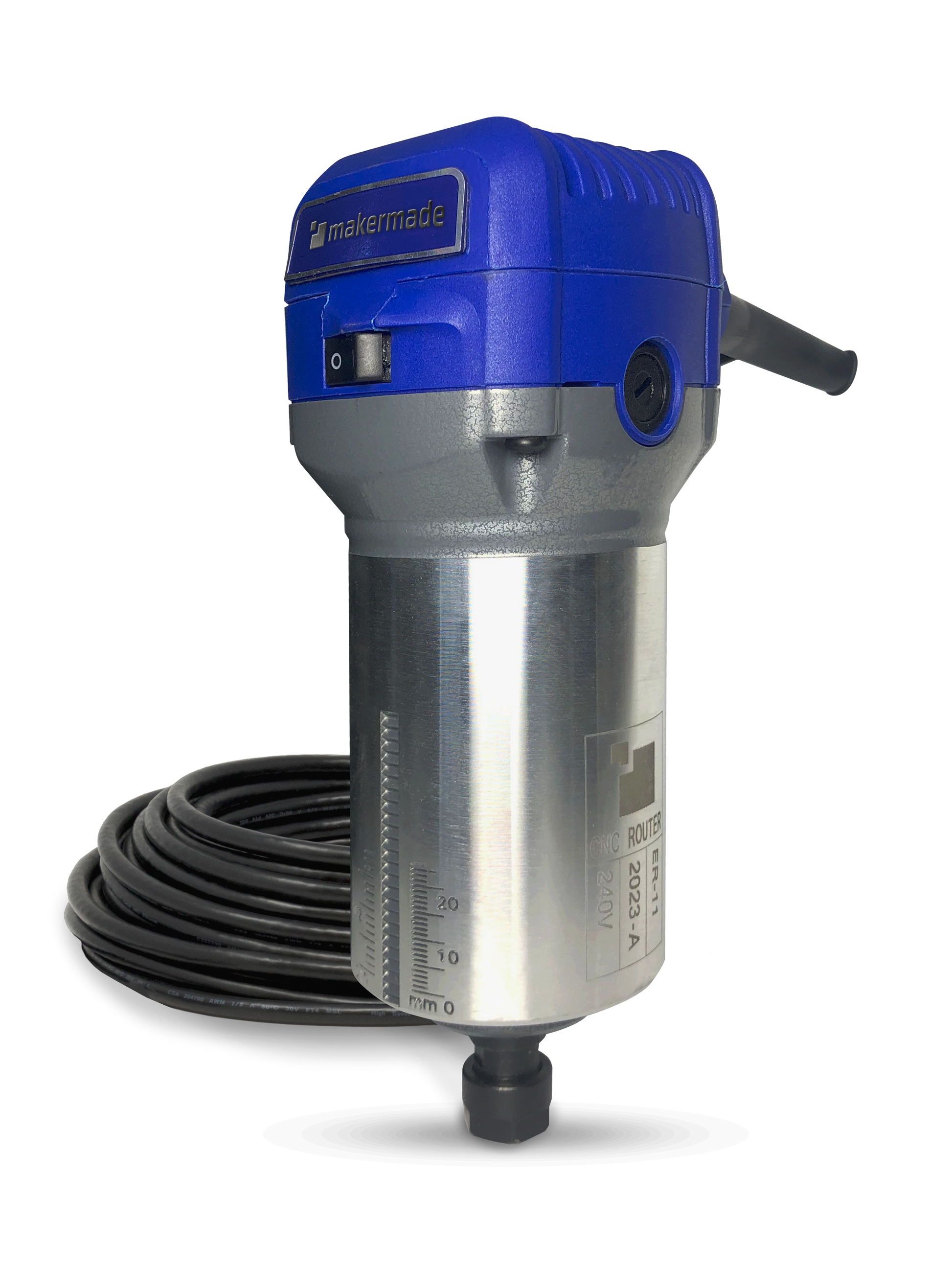

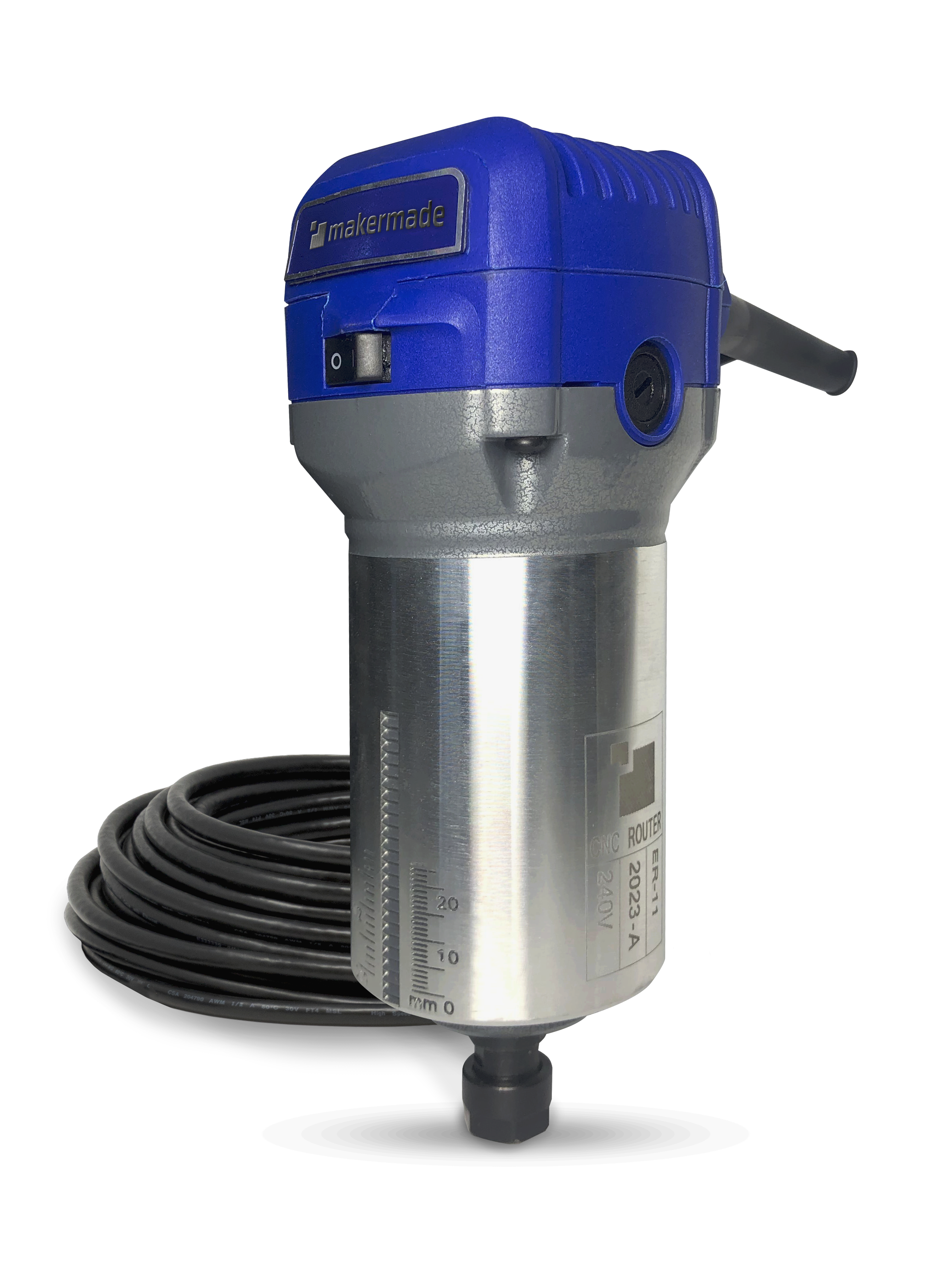

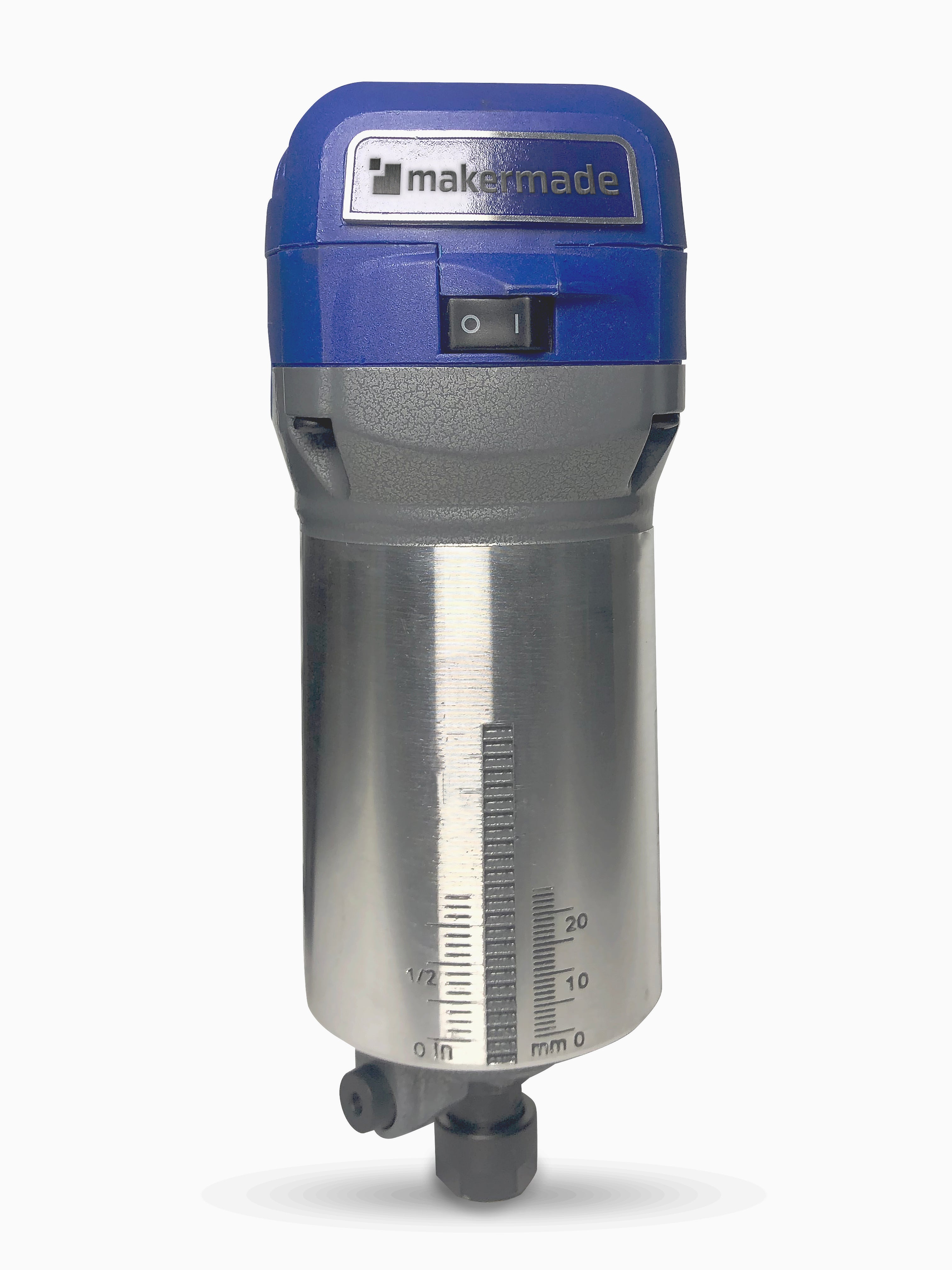

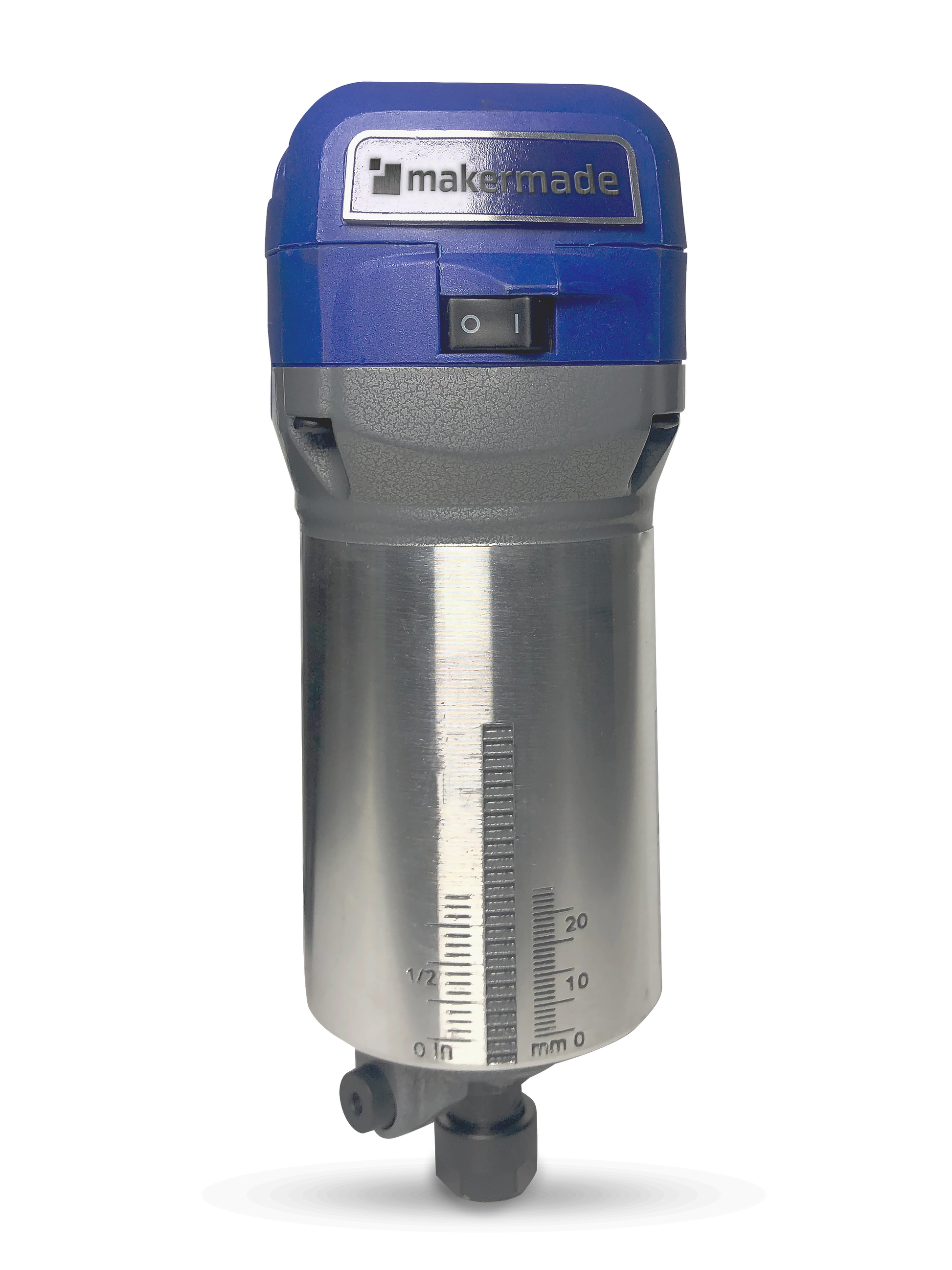

MakerMade CNC Router with ER-11 collet

$150.00

MakerMade CNC Router with ER-11 collet

$150.00

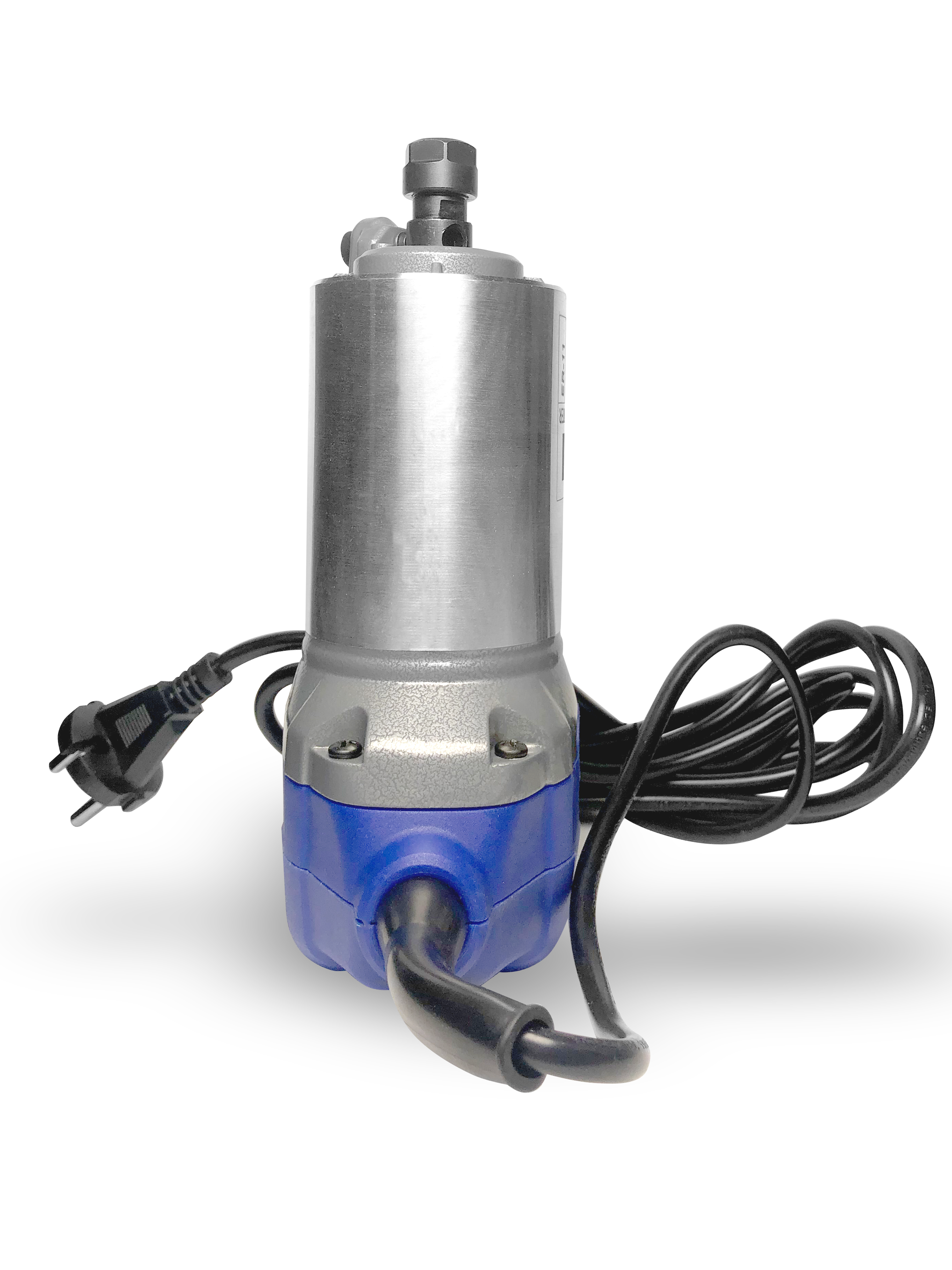

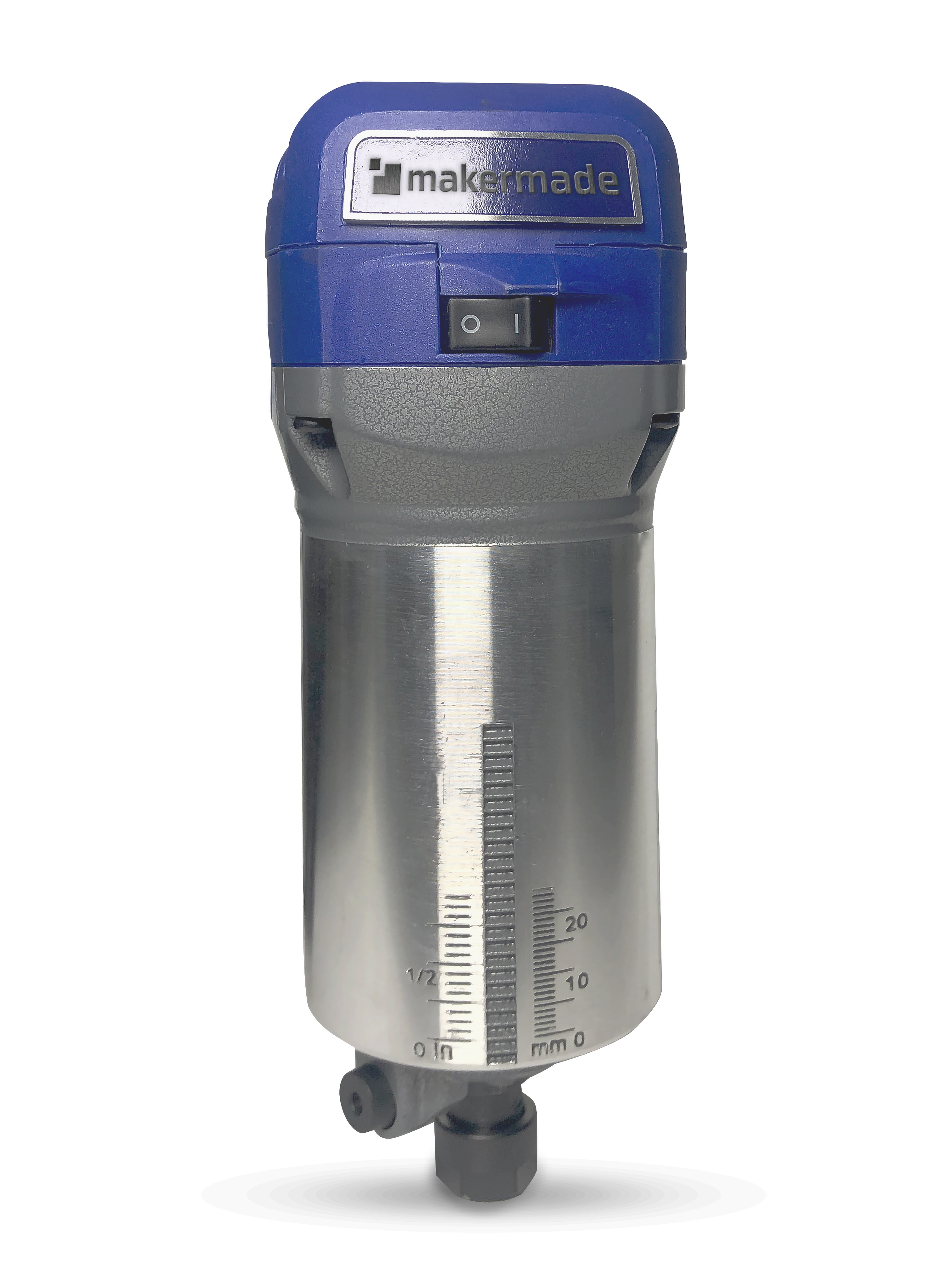

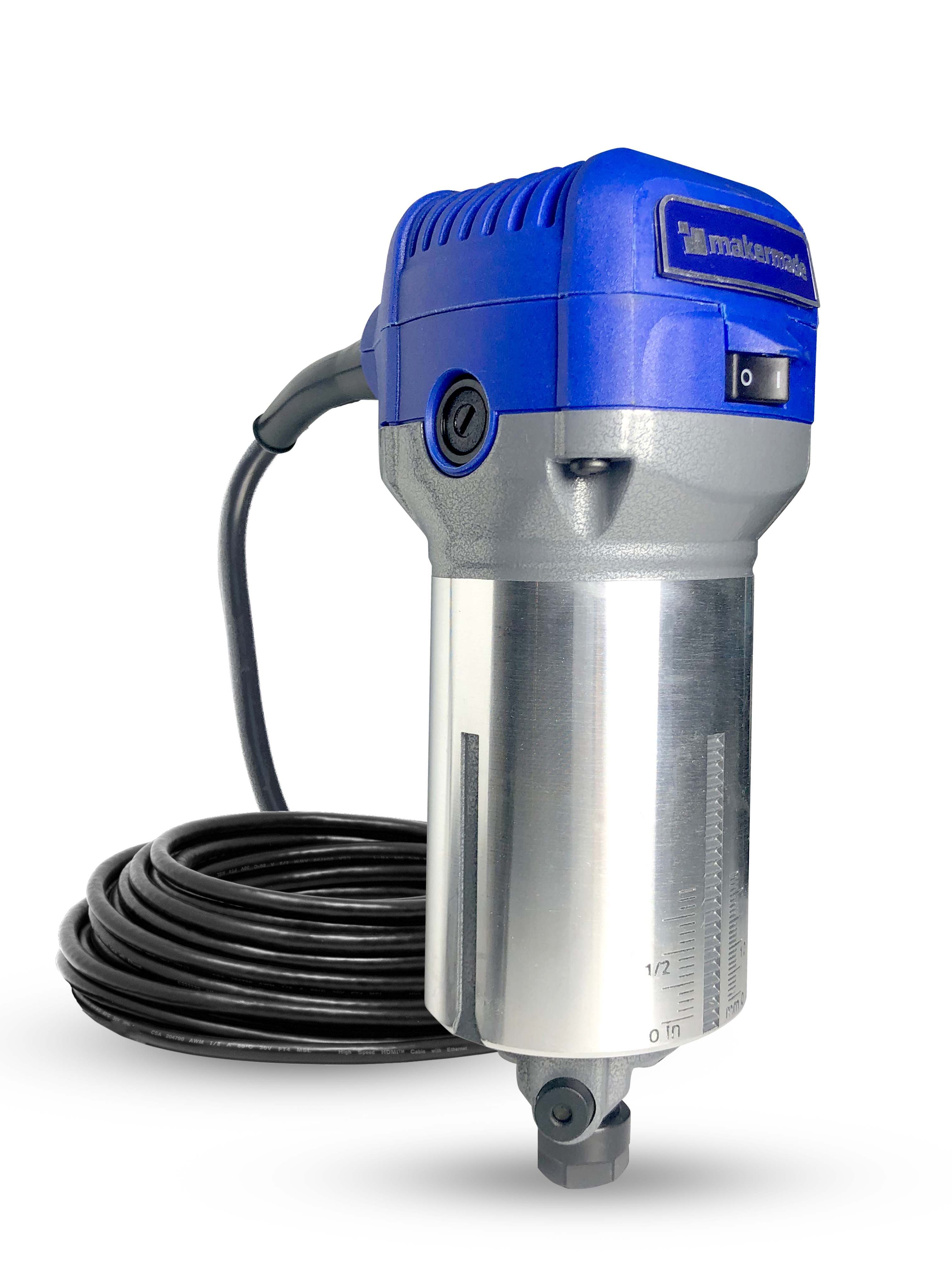

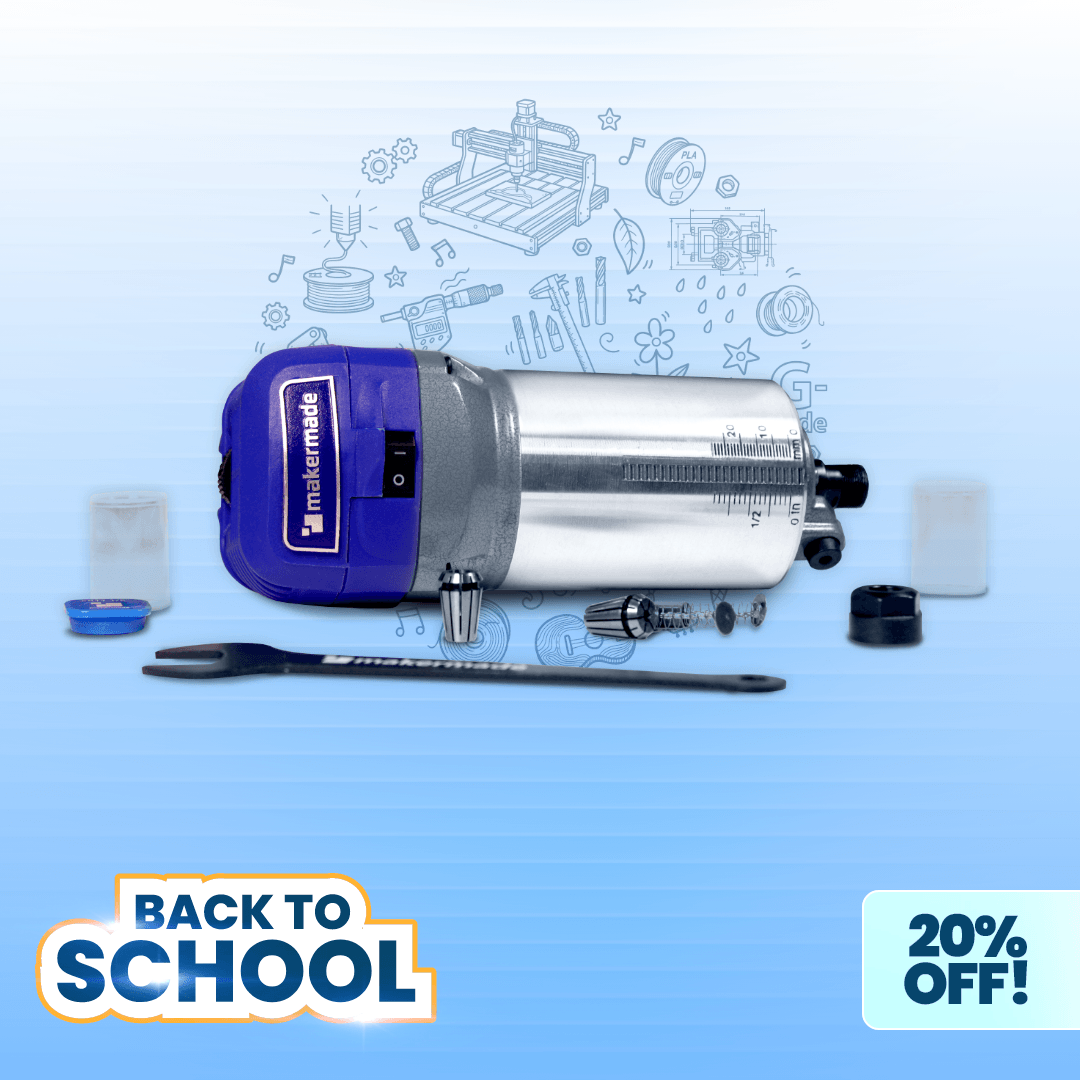

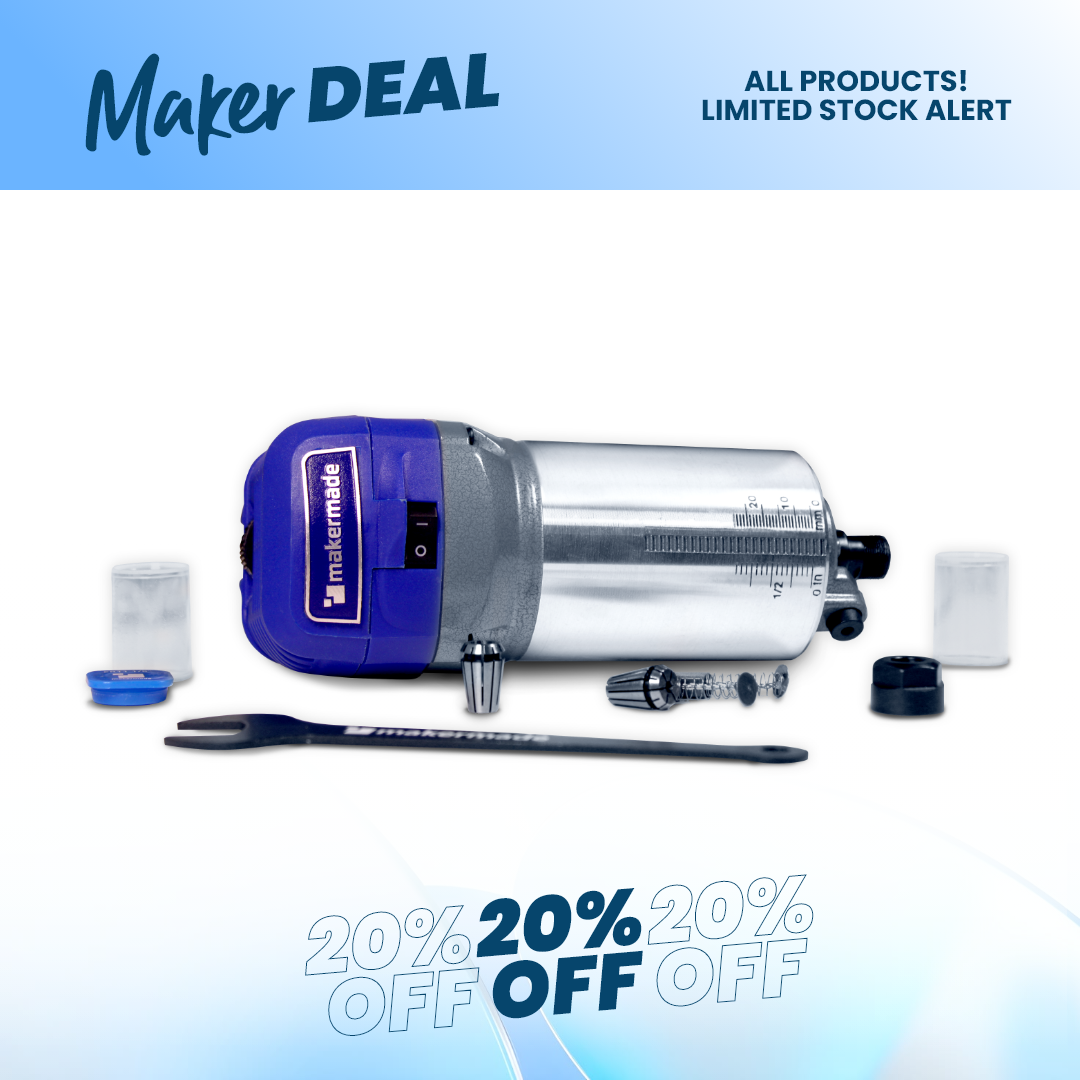

MakerMade's CNC Router with an ER-11 collet opens you up to a whole new world of router bits and End Mills not found on your standard hardware store router.  Specifically designed for your M2, Maslow, or other hobby CNC machines with a 65mm diameter spindle. The MakerMade CNC Router boasts a lengthy 12-foot (3.5-meter) power cable for use on various frame sizes without extension cords.  A powerful 1 HP motor with 6-speed variable control for speeds ranging from 10,000 RPM to 33,000 RPM running on quality NSK bearings.  Includes 1/8" & 1/4" ER-11 collets with a wrench, extra brushes for power users, and support from MakerMade!

To use the CNC Router, you will need a 65mm Router Clamp (sold separately).

North America/110-volt Model:

  • Extra long 12-foot power cable with North American Type-A Plug
  • For use in 110-120 volts AC power
  • 6.5 amps current @ 60 Hz
  • 6 switch Variable Speed Control
  • No Load Speed: 10,000 - 32,000 RPM

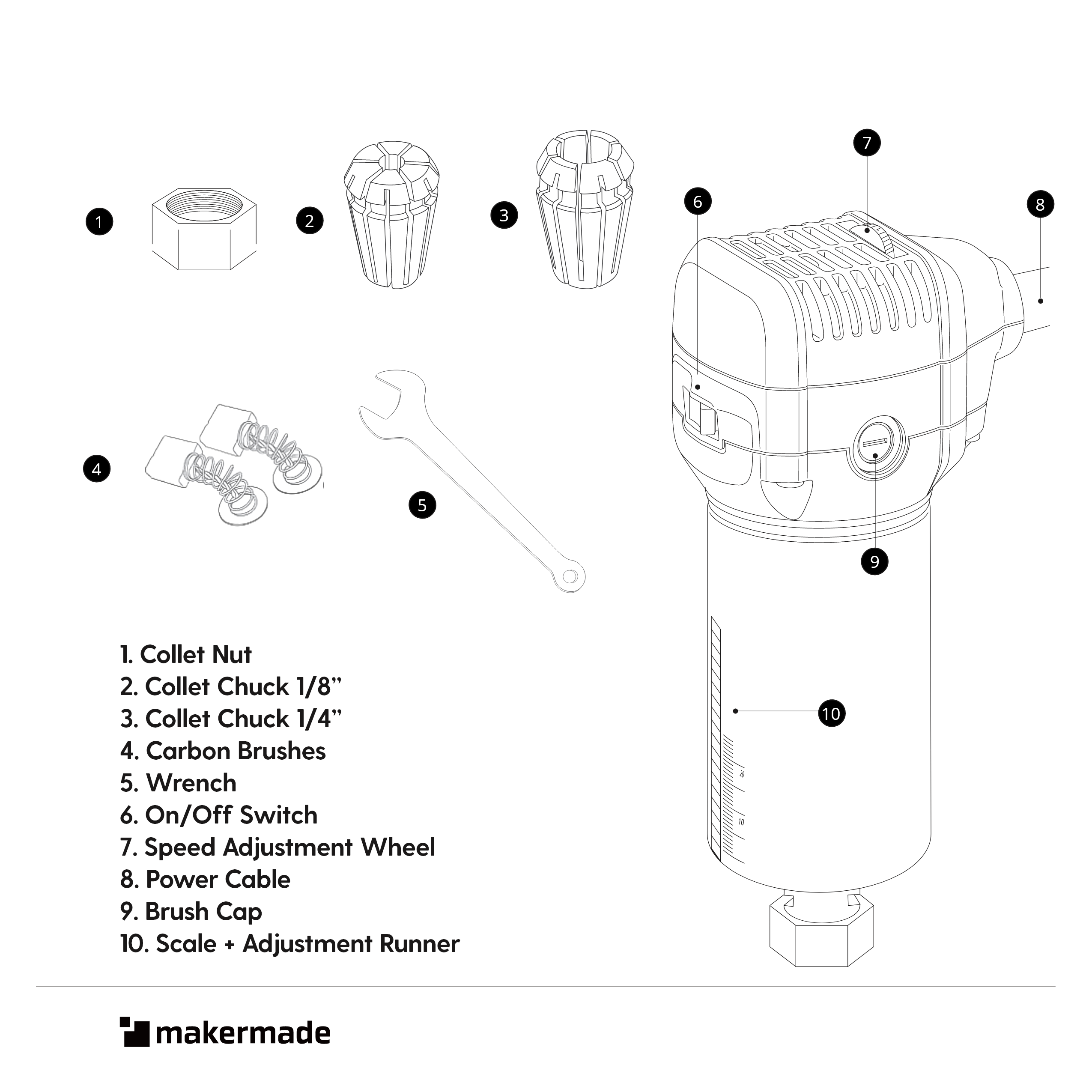

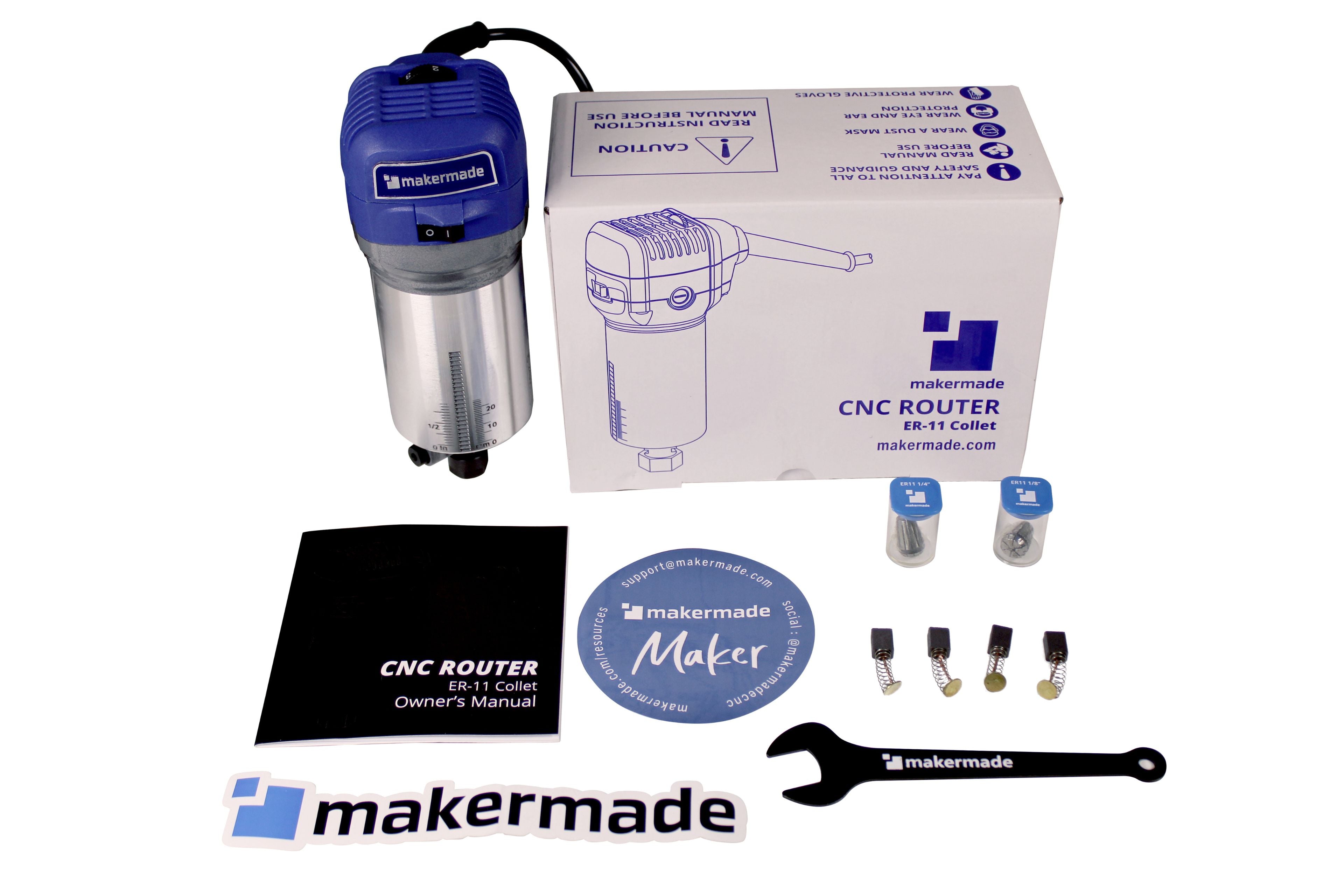

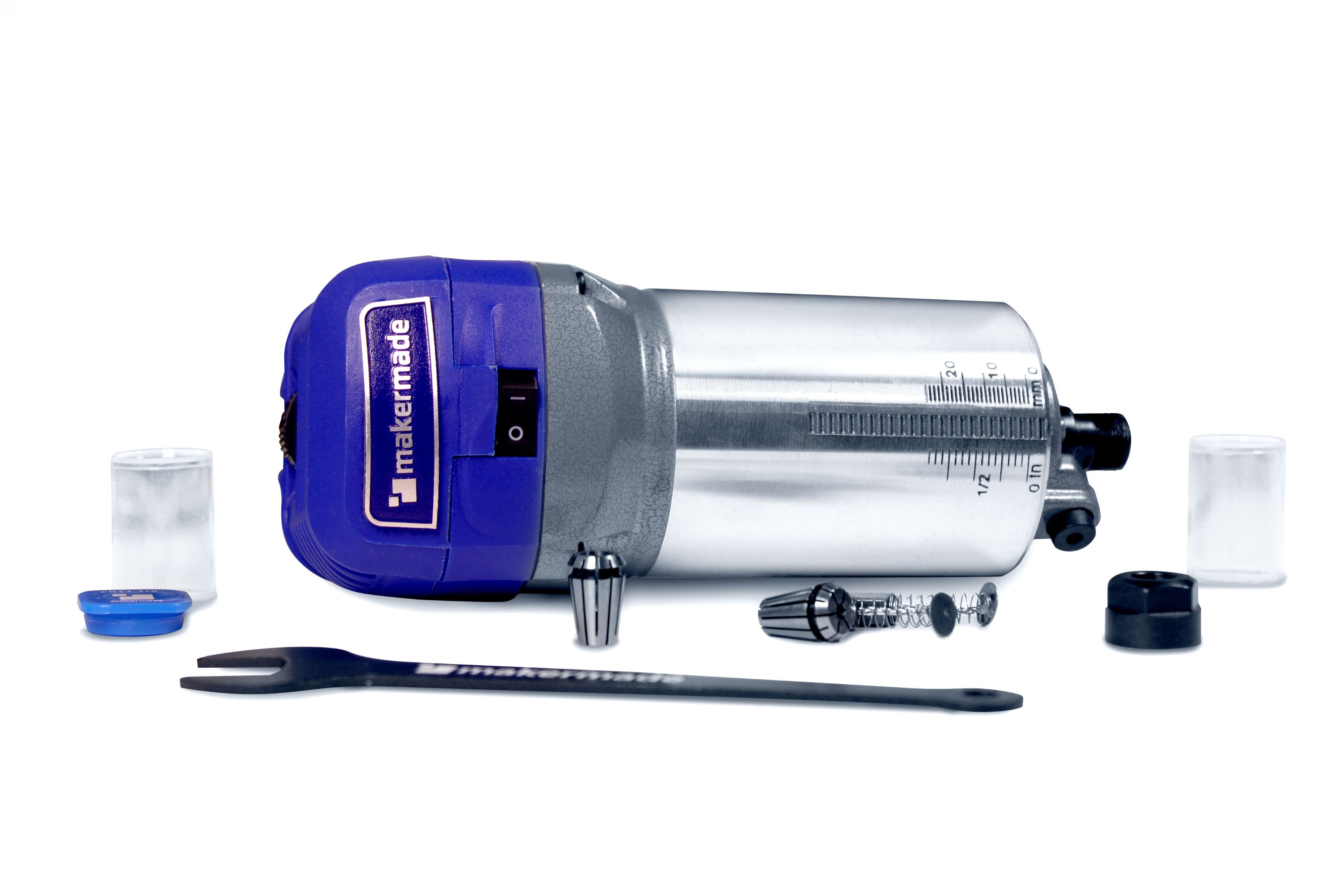

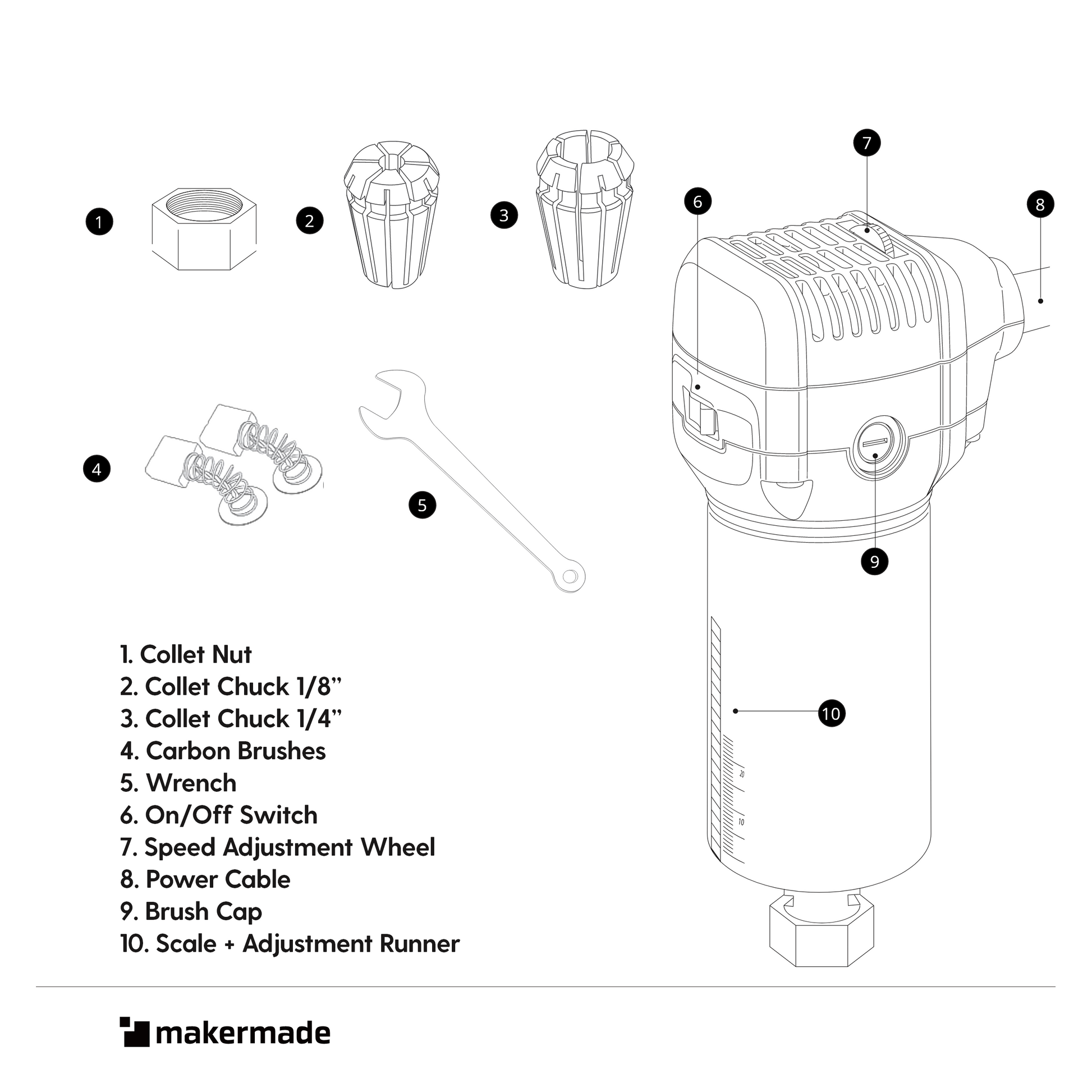

  • Included 1/8" & 1/4" ER-11 collets with wrench
  • Extra replacement brushes for power users

European/220-volt Model:

  • Extra long 3.5-meter power cable with European Type-C Plug
  • For use in 220-240 volts AC power
  • 4 amps current @ 50 Hz
  • 6 switch Variable Speed Control
  • No Load Speed: 13,000 - 33,000 RPM
  • Included 1/8" & 1/4" ER-11 collets with wrench
  • Extra replacement brushes for power users

    CNC ROUTER ER-11 COLLET MANUAL: Download Here

    *Accessories typically ship within 5 business days

    Notify me when back in stock

    Customer Reviews
    4.6 Based on 8 Reviews
    5 ★
    75%
    6
    4 ★
    13%
    1
    3 ★
    12%
    1
    2 ★
    0%
    0
    1 ★
    0%
    0
    Write a Review

    Thank you for submitting a review!

    Your input is very much appreciated. Share it with your friends so they can enjoy it too!

    Filter Reviews:
    MB
    07/26/2024
    Maurice B.
    United States United States

    MakerMade CNC Router

    This router is much quieter than my old craftsman one and makes it much easier to maintain depth consistency when swapping out bits. My only drawback is that the collet is a little difficult to remove when swapping bits since it is firmly seated when nut is tightened.

    J
    03/17/2024
    James SVG verified by SHOP
    United States United States

    As described

    TA
    02/02/2024
    Tony A.
    United States United States

    ROUTER/SPINDLE

    So far the spindle has worked as expected, hopefully it will outlast the Makita. I decided to take it easy on the spindle not worrying about chip load, I think that trying to get chip load to where I would like it is too hard on this type of spindle. So if my tool bits do not last as long I can live with that rather than pushing the spindle too hard. On the first few 1/2 hour runs I got a 25 degree F temperature rise, but as the bearings are seating themselves the temperature is dropping, I like the collet, sadly I gave a way a whole set of collets when I sold my smaller machine, oh well. Overall am pleased, delivery was excellent, packaging was a little light, the box had been dropped and the collet nut had come out through the box. Price was very good. I took out the Makita router that was installed and put it in a box as a back up machine. This will be my go to machine if it has a reasonable life span. Thank you, keep up the good work. Tony Aldridge.

    ME
    02/02/2024
    Mike E.
    United States United States

    Router

    Excellent CNC router. You need to provide more information about how to use a collet for people who don't know about them. And I wish that you had a collet torque wrench on your site.

    M
    09/06/2023
    Marga
    Philippines Philippines

    CNC Router

    Great product!

    GP
    03/02/2023
    Greg P.
    United States United States

    Great

    Great product. Prompt delivery. Zero complaints.

    MW
    03/01/2023
    Mark W.
    United States United States

    Have not used it yet

    I got bogged down installing python2 and calling python3 etc. I'm going to start over with a new laptop soon.

    BT
    12/03/2022
    Ben T.
    United States United States

    Awesome upgrade

    Impressive upgrade to my “off the shelf router “ with the machine collects I don’t have to over tighten to prevent bit slip, I also like the spindle lock it’s more robust then a plastic button found on most routers . As always with makermade it was shipped quickly and packaged nicely Can’t go wrong with it.
