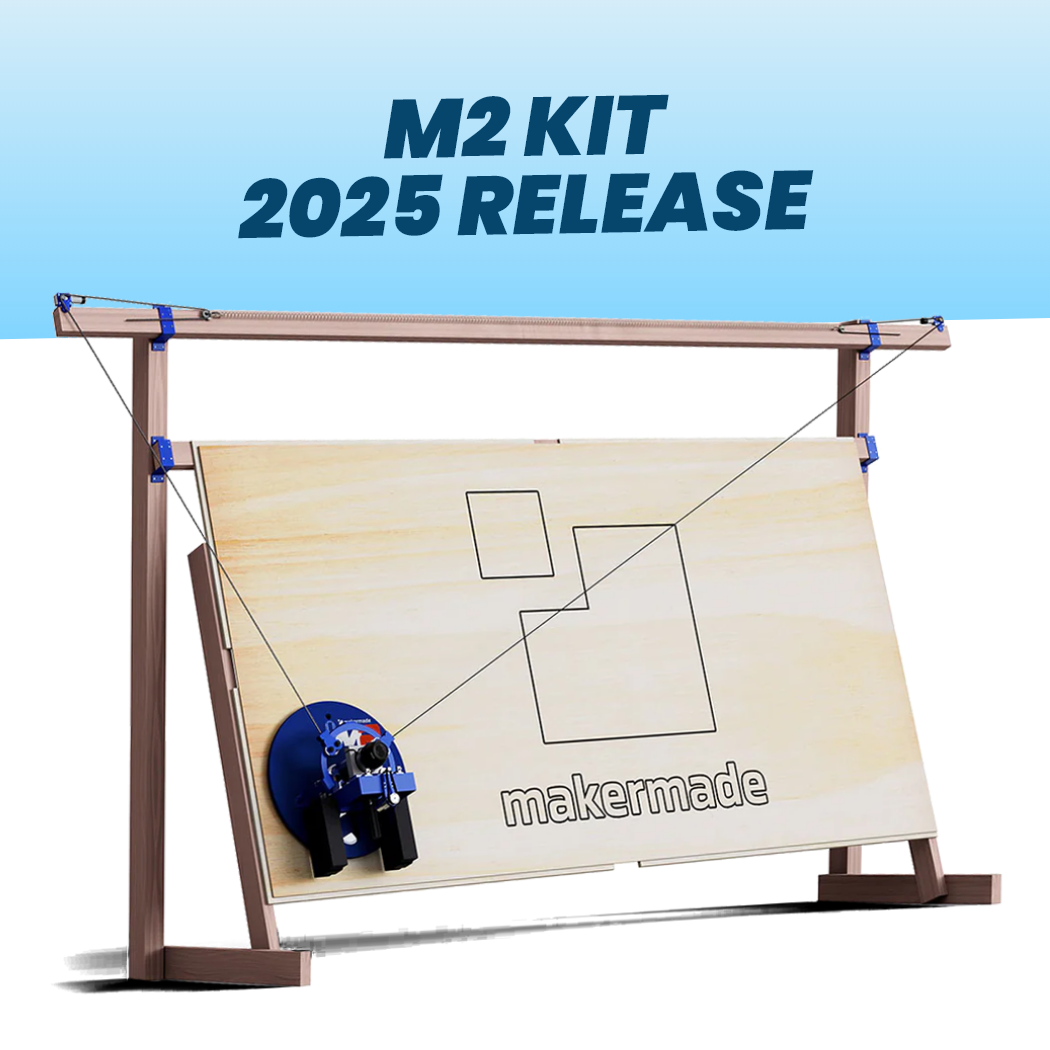

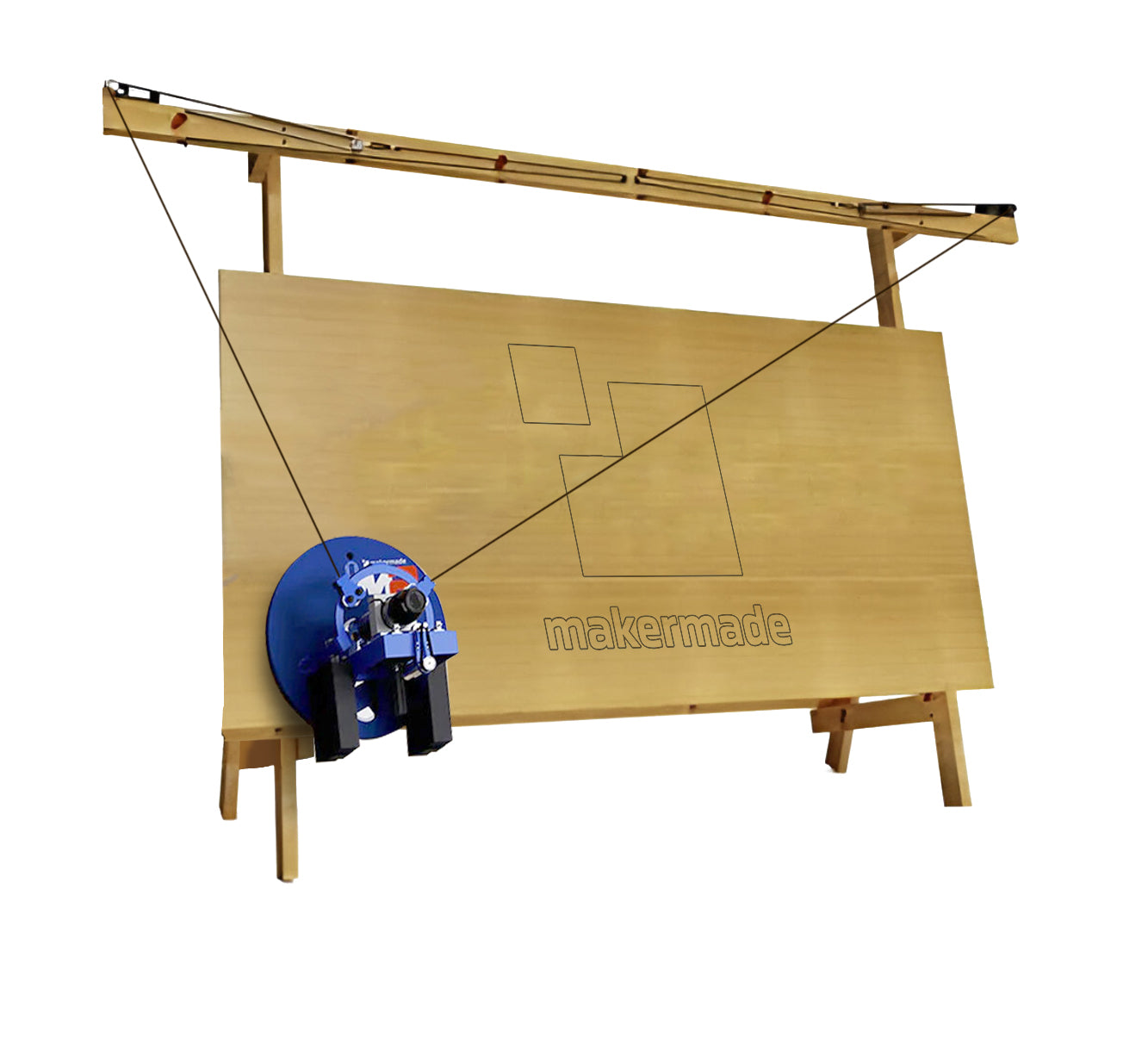

NEW! (2025 Release) MakerMade M2 CNC Kit

Regular price
$1,098.00
Sale price
$1,098.00
Regular price
$1,298.00
Shipping calculated at checkout.

The MakerMade M2 CNC Kit is a large-format, high-precision machine designed for makers, woodworkers, and small businesses. You still get the complete, high-quality M2 you know and love — with a rigid aluminum frame, powerful NEMA 23 stepper motors, and all the hardware you need to start cutting with <1 mm accuracy.

Select Power Cord Type:
Kit Type:
Router Clamp Size (65mm Default):

Guided Set-Up

All the resources and documentation you need to easily start your project, plus live Q&A sessions with our founder/CEO every week!

Unrivaled Support

Dedicated US customer service, a community of makers ready to assist and a calibration guarantee.

Money-Back Guarantee

30-day money back guarantee plus a 1-year parts replacement promise

Technical Specs

Cutting

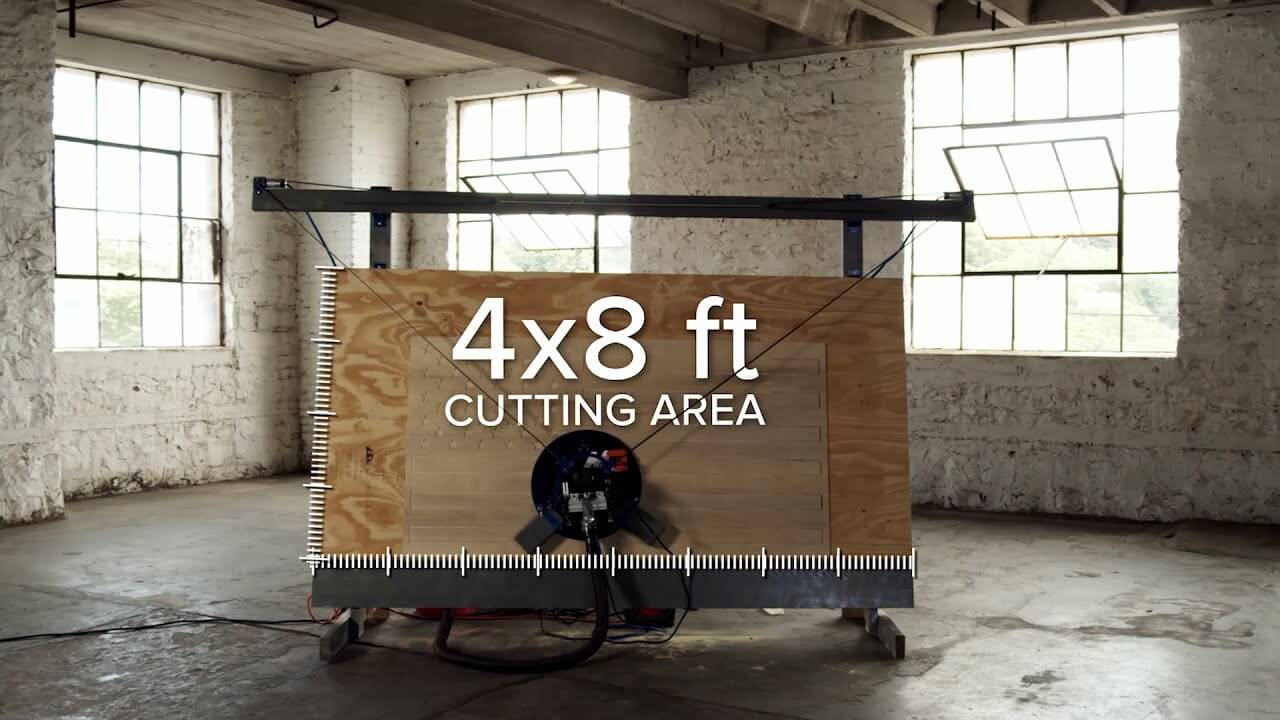

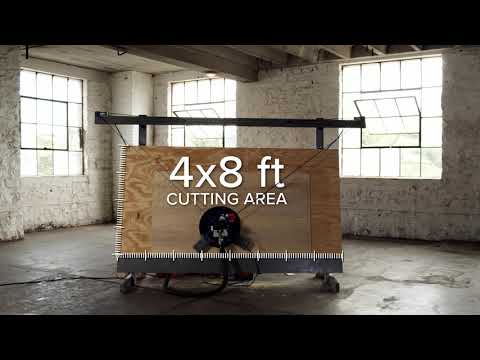

Technology: CNC Cutting/Routing (Computer Numerical Controlled) Cutting Volume: 4ft x 8ft x 3.8in (1.22m x 2.44m x 9.65cm), up to 32 sq ft Maximum Cutting Speed: Up to 40 in/min (ipm) (17mm/s) Material compatibility: Hardwoods, Plywood, MDF, Laminate, Hard Plastics (acrylic, nylon, uPVC, hard PVC), Soft Plastics (polycarbonate, polyethylene, soft PVC), thin sheet aluminum Router Bit Compatibility: Any drill, milling, or specialty bit that is compatible with your router Router Bit Size: 1/8in-1/2in (Depending on router used) Router Specifics: Based on router used, see our recommend router list for individual differences Accuracy: Less than 1mm variance across 32 sq ft

Mechanical

Weight: 23lbs (10.4kg) Package Size: 19in x 19in x 5in (48.2cm x 48.2cm x 12.7cm) Construction: All Metal Z-Axis, Metal Hardware, Metal Stud Mounts for Frame, Wood Sled X,Y, and Z motors: Industrial Drive Motors Max Plunge Depth: 3.8in (9.65cm) Dust Collection: Metal bracket with velcro straps Router Clamp: Metal 65mm standard (71mm or 91mm Clamp available) Chains: 11ft (3.35m) (15ft Chains Available) Z-Axis: All Metal Design for faster and cleaner cutting Router: See manufacturer specifications

Electrical

Power: 100-240v 50-60Hz 2.0A Input;12v, 5A Output Arduino: Arduino DUE v1.2 Control Shield Firmware: GBRL 1.1g Connectivity: microUSB Router: See manufacturer specifications

Software

Gcode Sender: Makerverse File Format: Gcode

Included with the M2

1-Year Limited Warranty Guides, videos, online resources, and community Tools for Kit Assembly US, EU, AU, UK Power Cord Choice USB Drive Support by MakerMade Router Bit Starter Set Marker for materials and chains

Included with the Laser Addition

2.8 Watt Laser diode component with mounting screws Laser Shroud Adjustable Safety Compliant Laser Diode Driver Power Cord (Including power adapter for international orders) Laser Safety Goggles for 445nm Lasers Laser Fan 3 foot Mini Molex Jr. Input Cable Laser and Fan Extension Cables 1k ohm 1/2w (0.5Watt) ±1% Tolerance Metal Film Fixed Resistor 25 mm M3 screws (If purchasing for the 71 mm clamp (2)) Emergency Stop Button
Cutting
Mechanical
Electrical
Software
Included with the M2
Laser Addition
Get Started with MakerMade in 3 Simple Steps
1

Order Your M2 CNC Kit

2

Set Up with Our Guidance

3

Make Your First Project

But wait, there’s more!

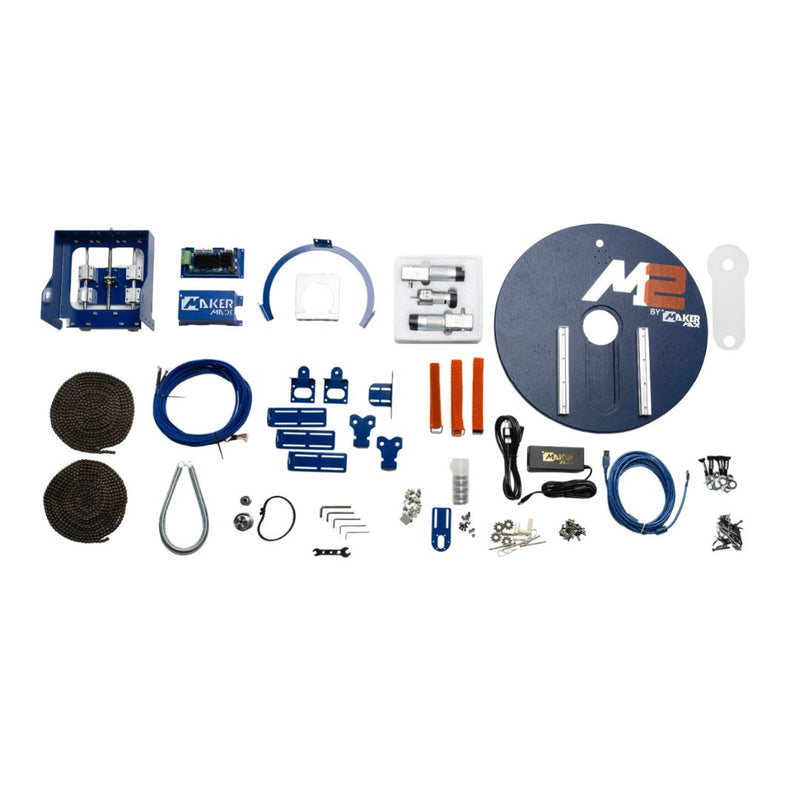

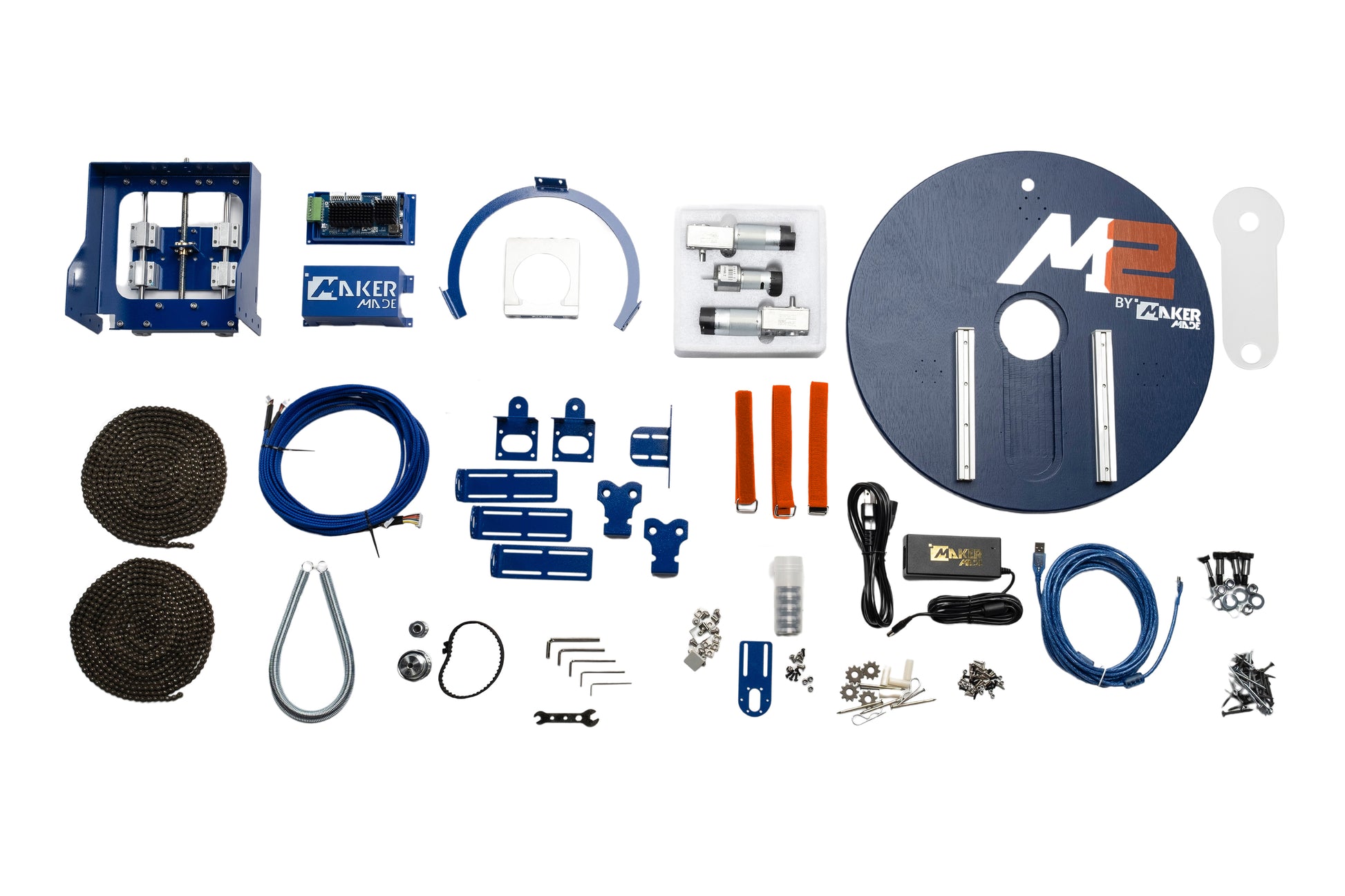

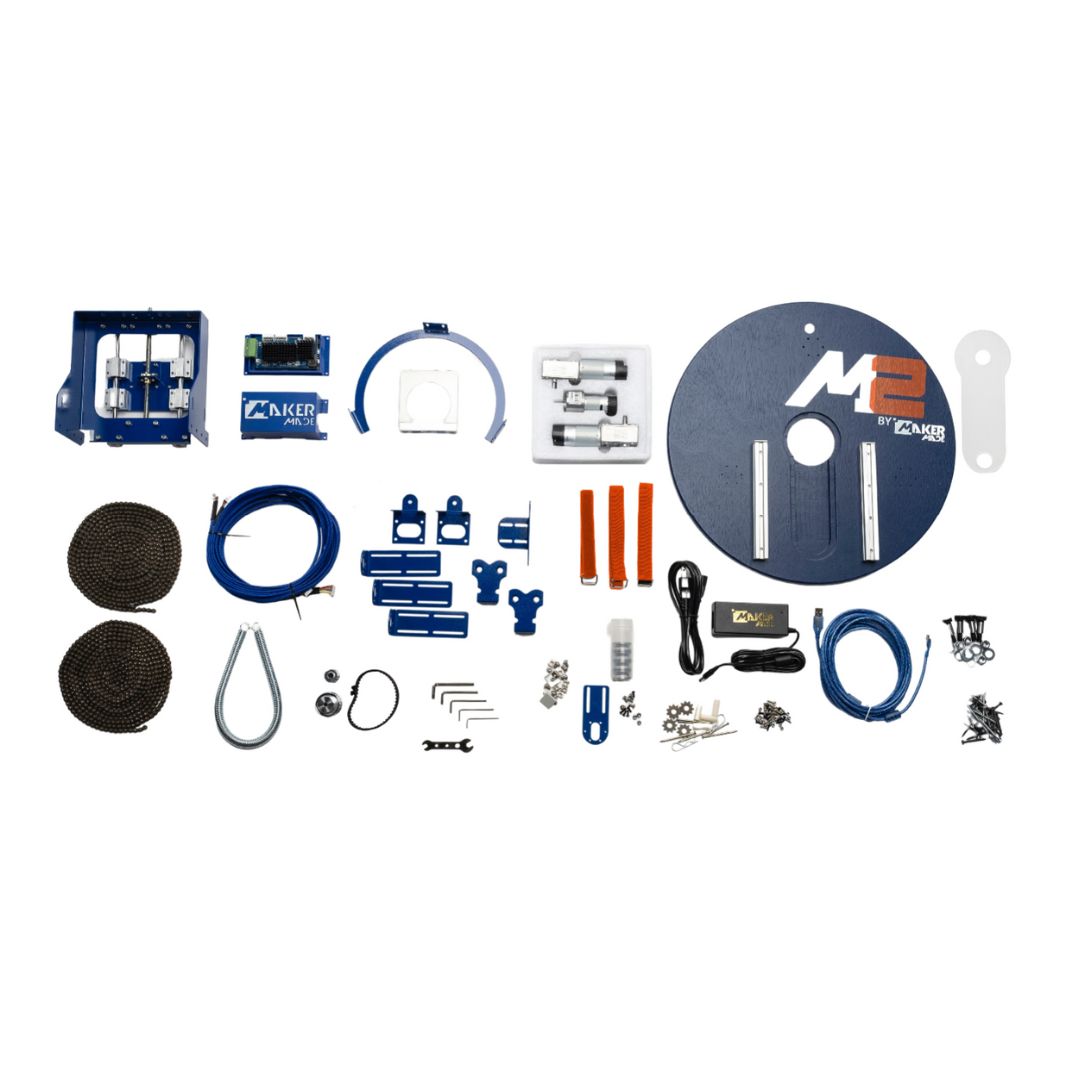

Here’s what comes standard with the M2:

  • Electronic board with improved calibration, laser capability and enhanced motion control
  • X, Y and Z-axis motors
  • Chain ring mount hardware
  • 15 ft drive chains
  • M2 enhanced dust collection sled
  • Standard (65 mm) router clamp
  • Velcro brick straps for added safety
  • Chain tension bungee spring
  • New, all metal Z-axis assembly with 3.8 in of total travel
  • Fully customizable dust collection solution
